Dry fluorescence immunoassay analyzer(ZOS-F2100)
parameter
| Hardware configuration | CPU: i MX6;Memory:1GB |
| Display card | Support 1080p resolution |
| Hard disk space | 8GB |
| Security software | No |
| Network conditions | Network port |
| Network operation environment | LAN |
| Printing system | Built in thermal printer |
| Data processing | Support LIS connection transfer test results and data import |
| Excitation light source | LED |
| Sample type | Whole blood, serum, plasma and urine |
| Sample management | Automatic identification of test items. The test results are output
and transmitted in time |
| Power parameters | Host input——24V,9.2A;Adapter input——AC 220V,50Hz |
| Input power | 220V |
| Number of tests | 20 channels (support multi project simultaneous test, independent
timing) |
Simple operation instructions

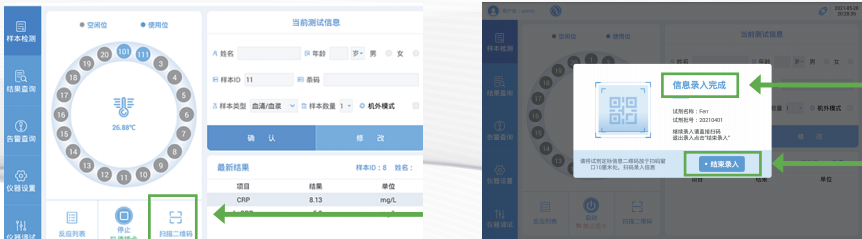

1. Click "Scan QR Code", align the QR code card with the QR code
scanner (approximately 10 cm) to read the project information, the
interface prompts "Information Entry Completed", click "End Entry"
matters needing attention:
(1) For different projects, the QR code card cannot be
cross-scanned.
(2) Two-dimensional code cards cannot be cross-scanned for the same
item in different batches
2.Enter the information of the tested person, select the sample
type, and click "Confirm"
External mode: refers to the reagent card of the sample to be
tested after the external temperature incubation is completed.
After the incubation, the reagent card is placed in the instrument
to analyze the sample result
3. Add sample: absorb sample, add buffer, and mix well
According to the reagent instructions, use the sampling gun to add
the mixed sample to the reagent card.
4. Test: Put the reagent card into the reagent bayonet of the
instrument, the instrument will automatically recognize the test
item and perform a countdown test
matters needing attention:
(1) Ensure that the reagent card is in place.
(2) No sample or test is allowed when the hatch is closed.
(3) When the countdown of a channel on the instrument interface is
less than 20 seconds, do not add samples or test.
(4) Do not try to prevent the door from closing.
(5) Clean the reagent card in the waste liquid box in time to
prevent the instrument from losing the card normally
Product features:
| Super capacitor touch screen | The 10.1-inch full touch screen is sensitive and easy to operate |
| Enrich peripheral interfaces | Can connect LIS /HISand external printer, etc |
| Automatic project identification | Automatic acquisition of reagent test items |
| Smart Android system | Better user experience |
| Automatic printing of results | Built in thermal printer for automatic printing of results |
| Centralized treatment of waste cards | The original waste card processing bin is neat and convenient |
| Scan code automatic entry | QR code entry of calibration information is convenient and quick |
| Many | Up to 20 test channels can realize batch test continuous detection
All channels support emergency measurement |
| Fast | In the external mode, the test results can be obtained after 5
seconds, and the fastest incubation time in the machine is 3
minutes |
| Quasi | Patent optical detection system 24 bit signal acquisition chip
detection accuracy greatly improved |
| Stable | Built in super stable incubation and detection system completely
solves the result deviation caused by temperature difference |
